Switching between 0.030-inch sheet and 1/4-inch plate in the same project creates instant problems: burn-through on the thin side or lack of root fusion on the thick side. Mastering how to TIG weld different thickness metals solves this by matching amperage, pulse settings, travel speed, and joint preparation to the exact thickness and material.
Correct decisions deliver full penetration, zero distortion, and clean beads every time. Wrong settings waste material and time.
I’ll discuss the precise values and real-world adjustments needed for mild steel, stainless, and aluminum across thin, medium, and thick sections.

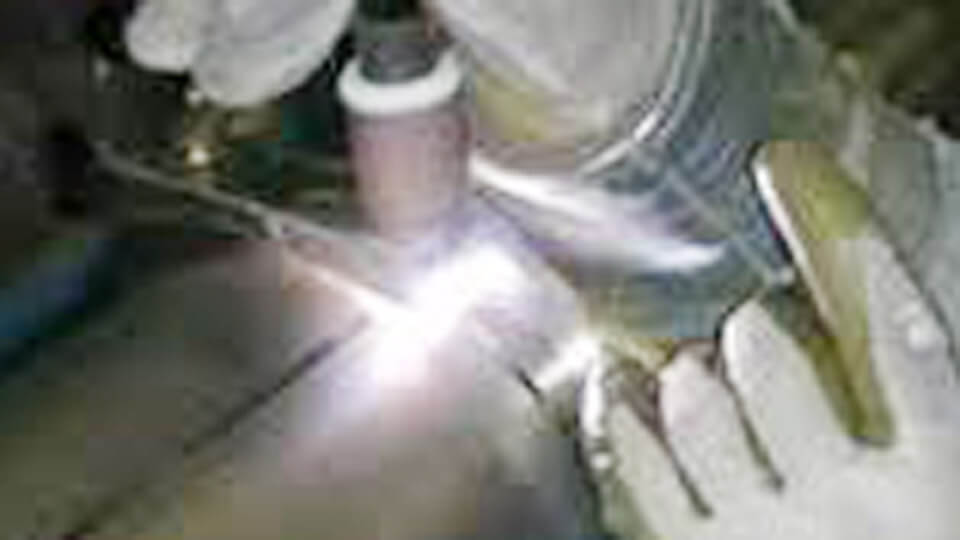

Image by thefabricator
Amperage Settings for Different Thickness Metals
Amperage must scale directly with thickness and material conductivity. Use the 1 amp per 0.001 inch rule for mild steel as your baseline, then adjust for joint type, travel speed, and metal.
Mild Steel and Stainless DCEN Amperage Ranges
Start here for DC electrode negative on ferrous metals. Stainless requires roughly 10% lower amperage than mild steel because it retains heat longer.
| Thickness (inch / mm) | Practice Bead (A) | Closed Butt (A) | Fillet (A) | Open Root Butt (A) | Tungsten (mm) | Filler (mm) |
|---|---|---|---|---|---|---|
| 0.031 / 0.8 | 25 | 30 | 35 | 20 | 1.0 or 1.6 | 1.0 |
| 0.040 / 1.0 | 30 | 35 | 45 | 25 | 1.0 or 1.6 | 1.0 |
| 0.063 / 1.6 | 45–60 | 55–75 | 75–110 | 40–55 | 1.6 | 1.0–1.6 |
| 0.125 / 3.2 | 80–100 | 100–120 | 110 | 75–90 | 1.6 | 1.6 |
| 0.250 / 6.4 | 160–200 | 180–220 | 200+ | 140–180 | 2.4 | 2.4 |
These values assume argon shielding, 10–15° torch angle, and foot-pedal control. Increase 5–10 A when using 1.6 mm filler because the larger rod cools the puddle faster.
Aluminum AC Amperage and Adjustments
Aluminum demands 30–50% higher amperage than steel of the same thickness because of its high thermal conductivity and oxide layer. Use AC with 60–70% EN balance for penetration without excessive cleaning.
- 0.063 inch (1.6 mm): 70–100 A
- 0.125 inch (3.2 mm): 120–160 A
- 0.250 inch (6.4 mm): 200–280 A (add helium 25–50% for deeper penetration on thick sections)
Start 10–15 A higher than calculated, then dial back with the pedal once the puddle forms. Inverter machines run 10–15% lower amperage than transformer machines for the same thickness.
Voltage, Travel Speed, and Heat Input Decisions
Voltage stays relatively fixed (10–14 V thin, 14–18 V thick). Heat input formula (HI = V × A × 60 / travel speed in ipm) guides decisions: keep HI under 15 kJ/in on thin stainless to avoid distortion. Faster travel (8–12 ipm thin, 4–6 ipm thick) requires higher peak amperage to maintain puddle size.
Tungsten Electrode and Filler Rod Selection
Electrode diameter must carry the amperage without overheating or contaminating the weld.
Electrode Diameter and Type by Amperage Range
- 0–80 A: 1.0 mm or 1/16 inch (2% lanthanated or ceriated preferred)
- 80–150 A: 1.6 mm or 3/32 inch
- 150–250 A: 2.4 mm or 3/32 inch sharpened to 30° point
- Over 250 A: 3.2 mm or 1/8 inch
Use pure tungsten or zirconiated only on AC aluminum. Lanthanated offers the best arc stability across DC and AC for mixed-thickness jobs.
Filler Rod Diameter and Alloy Matching
Match filler diameter to base thickness or one size larger:
- Thin (<1.6 mm): 1.0 mm rod
- Medium (1.6–3.2 mm): 1.6 mm rod
- Thick (>3.2 mm): 2.4 mm or larger
Always match alloy—ER70S-2 or ER70S-6 for mild steel, 308L for 304 stainless, 4043 or 5356 for aluminum. Dip filler at 15–20° angle during the background pulse cycle only.
Shielding Gas Flow and Torch Setup
Argon remains the default for all thicknesses up to 1/4 inch. Flow rate decisions prevent both oxidation and turbulence.
Optimal Gas Flow Rates
- #4–#7 cup (thin work): 10–15 CFH
- #8–#10 cup or gas lens (thick or outdoors): 15–20 CFH
- Thick aluminum (>1/4 inch): switch to Ar/He 75/25 mix and raise flow 20%
Post-flow 10–15 seconds protects the tungsten and puddle on stainless and titanium.
Torch Angle, Cup Size, and Stand-Off
Maintain 10–15° push angle. Stand-off distance equals electrode diameter (1.6 mm electrode = 1.6 mm gap). Gas lens diffusers allow lower flow while improving coverage on thin sheet edges.
TIG Welding Thin Metals Without Burn-Through
Thin material (under 1/16 inch) requires deliberate heat management. Continuous current overheats quickly.
Low-Amperage Technique and Pedal Control
Set base amperage 10–20% below chart values. Use the foot pedal to ramp up only during filler addition and ramp down before crater. Travel speed 10–14 ipm keeps the puddle small and moving.
Pulsed TIG for Thin Sections
Pulse settings cut average heat input by 30–50%.
- Peak amperage: chart value +15–20%
- Background: 25–35% of peak
- Pulse width: 40–50%
- Pulses per second (PPS): 80–150 for stiff arc and fast travel; 1–3 PPS for “stacked dimes” appearance
On 0.040-inch stainless, 60 A peak / 18 A background at 100 PPS and 12 ipm travel produces a 1/8-inch wide bead with zero distortion. Add filler only on peak current.
TIG Welding Medium Thickness Metals (1/16–1/8 Inch)
This range allows steady DC or low-pulse modes. Use chart amperage directly with foot-pedal modulation of ±10 A to control puddle width. Maintain 1/8–3/16 inch arc length. Travel 6–9 ipm on butt joints. Single-pass fillet welds work cleanly up to 3.2 mm when edges are square and fit-up is tight.
Techniques for Thick Metals and Multi-Pass Welding
Sections over 1/8 inch need layered passes rather than single high-amperage runs.
Achieving Full Penetration
Root pass: use 70–80% of final amperage, keyhole technique on open-root joints.
Fill and cap passes: increase amperage 10–20 A per pass, weave 2–3 times electrode diameter.
For 1/4-inch mild steel: root at 140 A, two fill passes at 180–200 A each.
Preheating and Interpass Control
Preheat carbon steel to 200–300°F above 1/4 inch. Keep interpass temperature below 350°F on stainless to avoid carbide precipitation. Aluminum thick sections benefit from 300°F preheat to reduce cracking.
Welding Dissimilar Thickness Joints
Transition joints demand asymmetric heat distribution.
Joint Preparation for Thickness Transitions
Bevel the thicker member 30–45° to create a shelf. Leave the thin side square. Root gap 0–1/32 inch. Tack every 2–3 inches with low amperage to prevent movement.
Heat Management Strategy
Direct 70% of arc energy toward the thicker side. Use pulsed mode with 120 PPS. Start the arc on the thick side and walk the puddle onto the thin side. Reduce amperage 20% when crossing the transition line.
Material-Specific Adjustments
Mild Steel vs Stainless Steel
Mild steel tolerates wider parameter windows. Stainless requires stricter gas coverage and lower interpass temperatures. Use 308L filler and back-purge when possible.
Aluminum and Magnesium
AC frequency 80–120 Hz on inverters for tighter arc. Balance 65% EN for thick sections, 75% for thin. 5356 filler gives higher strength on 6061; 4043 flows easier on castings. Helium blends increase penetration on 1/4-inch+ aluminum without raising amperage excessively.
Pulsed TIG and Waveform Optimization for Variable Thickness
Pulse turns one machine setting into multiple effective heat levels.
- 100+ PPS: narrow, stiff arc ideal for thin-to-thick transitions
- Background 25%: maximum heat reduction
- Pulse width 50%: balanced bead profile
On AC aluminum, combine pulse with adjustable frequency and balance. High-frequency pulse (above 100 Hz) on inverters allows 15–20% faster travel while maintaining puddle control across thickness changes.
Wrapping Up
The decisive factor when TIG welding different thickness metals is always matching average heat input to the thinnest section while guaranteeing penetration into the thickest.
Professionals achieve this by pairing pulsed waveforms with real-time pedal control and asymmetric torch positioning on transition joints.
Apply these exact amperage, pulse, and preparation values and your welds will pass any visual or bend test on the first attempt—regardless of the material or thickness combination in front of you.
FAQs
What amperage do I use for 1/8-inch aluminum TIG welding?
Start at 130–150 A AC with 65% EN balance and 1.6 mm lanthanated tungsten. Adjust with the pedal once the puddle appears.
How do I prevent burn-through on 0.040-inch stainless sheet?
Use pulsed TIG at 80–120 PPS, background 30%, peak amperage 45–55 A, and travel 12+ ipm. Add filler only on peak pulses.
Can I TIG weld thin sheet to thick plate in one joint?
Yes—bevel the thick side 30–45°, direct 70% arc energy to the thick member, and pulse at 100+ PPS to control heat crossover.
What pulse settings work best for thin-to-thick stainless transitions?
Peak = chart amperage +15%, background 25–30%, width 45%, PPS 100–150. This keeps the thin side cool while penetrating the thick side.
