The puddle looked right for a second, then it suddenly went dull and sugary around the edges. I eased off the trigger, knowing I’d just overheated the joint. MIG welding 304 stainless steel can turn on you fast if you treat it like mild steel—I learned that the hard way after ruining a clean piece that wasn’t cheap to replace.
304 stainless is strong and corrosion-resistant, but it’s also sensitive to heat, contamination, and poor gas coverage.
Too much heat input weakens the weld, poor technique kills corrosion resistance, and sloppy prep shows up immediately in the bead. Getting it right isn’t just about looks—it affects durability, strength, and long-term performance.
After years of welding stainless in shops and on-site jobs, I’ve narrowed down what actually works and what to avoid. Let me walk you through the MIG setup and techniques that keep 304 stainless clean, strong, and frustration-free.

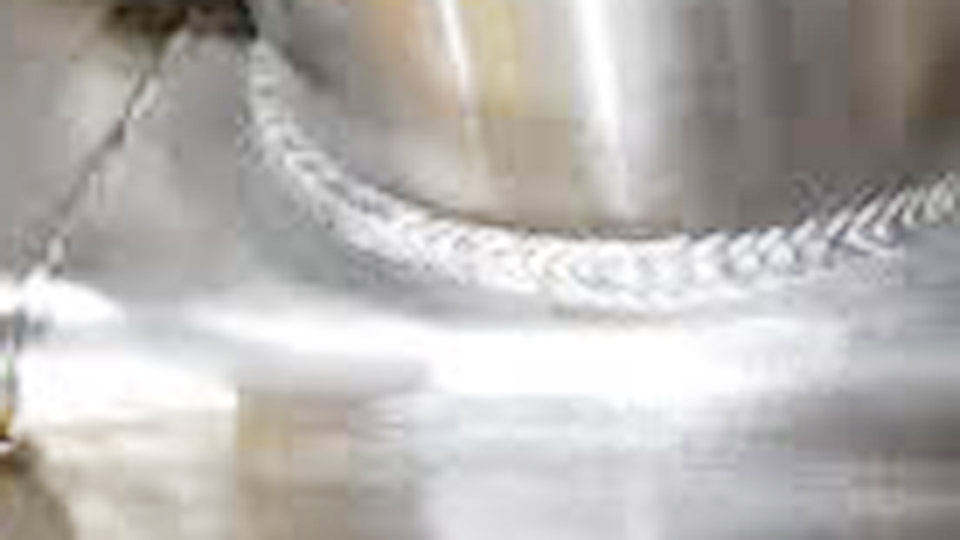

Photo by reddit
What Makes 304 Stainless Steel Tricky Yet Ideal for MIG Welding?
304 stainless steel stands out because of its composition—about 18% chromium and 8% nickel—which gives it that stellar resistance to rust and oxidation. In MIG welding, this means your welds stay strong in harsh environments, like marine applications or food processing where hygiene is key.
But here’s the catch: its low thermal conductivity means heat builds up quickly in one spot, leading to warping or burn-through if you’re not dialed in.
I’ve welded miles of this stuff on projects from brewery tanks to architectural railings, and it performs beautifully when treated right. Use it for anything that needs durability without the weight of carbon steel.
When should you choose MIG for 304? It’s faster than TIG for thicker sections, say over 1/8 inch, and great for production runs. Why? The continuous wire feed lets you lay down beads efficiently, reducing downtime in a busy shop.
Understanding the Alloy’s Behavior Under Heat
Heat 304 too much, and you’ll get carbide precipitation, weakening the corrosion resistance. That’s why pulsed MIG or short-circuit modes work well—they control the heat input.
In my experience, welding thin sheets around 16 gauge requires lower amps to prevent distortion. I’ve learned this the hard way on a prototype job where overheating turned a flat panel into a potato chip.
Comparing 304 to Other Stainless Grades in MIG Applications
Not all stainless welds the same. 316 has more molybdenum for better pitting resistance but costs more. For MIG, 304 is versatile and affordable for general fab work.
Pros of 304: Excellent formability, welds clean with minimal spatter. Cons: Prone to sensitization if overheated, so keep interpass temps under 300°F.
Selecting the Best Filler Wire for MIG Welding 304 Stainless Steel
Filler wire is your weld’s backbone. For 304, go with ER308L or ER308LSi—the “L” means low carbon to match the base metal and prevent cracking.
How does it work? The wire melts into the puddle, alloying with the stainless to create a strong, ductile joint. The silicon in LSi versions improves fluidity for smoother beads.
Use it when welding 304 to itself or mild steel. Why? It maintains the austenitic structure, ensuring the weld doesn’t become brittle.
Matching Wire Diameter to Your Project Thickness
Diameter matters. For thin material under 1/8 inch, 0.030-inch wire gives better control and less heat. Thicker stuff? Step up to 0.035 or 0.045 inch for deeper penetration.
I’ve switched mid-job on a repair for a dairy tank—starting with too thick a wire caused excessive spatter and poor fusion. Lesson: Test on scrap first.
Pros and Cons of Common Filler Options
| Filler Wire | Pros | Cons | Best For |
|---|---|---|---|
| ER308L | Low carbon, good corrosion resistance, affordable | Less fluid on vertical welds | General fabrication, horizontal positions |
| ER308LSi | Better wetting action, cleaner beads | Slightly higher cost | Overhead or out-of-position welding |
| ER309L | Higher chromium for dissimilar metals | Overkill for pure 304, more expensive | Welding 304 to carbon steel |
Always store wire in a dry spot; moisture leads to porosity. I’ve seen pros ruin a spool by leaving it out overnight.
Dialing In Your MIG Welder Settings for 304 Stainless
Settings are where most welds go wrong. For MIG welding 304 stainless steel, aim for 18-22 volts and 100-200 amps, depending on thickness.
How it works: Voltage controls arc length, amps dictate heat. Too high amps? Burn-through. Too low? Lack of fusion.
Use these when tackling sheet metal or pipe. Why? Balanced settings ensure full penetration without distortion.
Recommended Amperage Ranges by Material Thickness
Start low and adjust up. For 1/16-inch plate, 90-120 amps. 1/4-inch? 160-200 amps.
In my shop, I use a Lincoln Electric Power MIG for this—reliable for US setups. Pulse mode helps on thinner stock by cycling heat.
Shielding Gas Mixes That Make a Difference
Argon with 1-2% CO2 or oxygen is standard. It stabilizes the arc and reduces oxidation.
Tri-mix (helium-argon-CO2) for thicker sections—better penetration but pricier. I’ve used it on heavy frames; the extra cost pays off in fewer passes.
Tip: Flow rate 20-30 CFH. Too much turbulence? Spatter city.
Preparing Joints Properly Before MIG Welding 304 Stainless
Joint prep is non-negotiable. Clean edges ensure contaminant-free welds.
What is it? Beveling, grinding, or chamfering to allow filler penetration.
How: Use a grinder or plasma cutter for bevels on thicker stock.
When: Always on butt joints over 1/8 inch. Why? Prevents incomplete fusion.
Step-by-Step Joint Preparation Process
First, degrease with acetone—oil causes porosity.
Second, grind to bright metal; remove mill scale.
Third, fit-up with minimal gap, tack weld.
I’ve skipped this on rush jobs and regretted it—porous welds meant grinding out and rewelding.
Handling Distortion in Joint Design
304 expands a lot. Use skip welding or clamps to minimize warping.
For long seams, backstep technique: Weld short sections backward to distribute heat.
A Hands-On Guide to MIG Welding 304 Stainless Steel
Ready to weld? Let’s walk through it.
Step 1: Set up your machine—wire, gas, settings as above.
Step 2: Position comfortably; good visibility prevents defects.
Step 3: Strike the arc at 15-20° angle, push technique for stainless.
Step 4: Maintain 1/8-inch stickout, steady travel speed.
Step 5: Inspect—look for uniform bead, no undercut.
Techniques for Different Positions
Flat: Easy, use weave for wide joints.
Vertical: Uphill, short arcs to fight gravity.
Overhead: Lower amps, stringer beads.
I once welded overhead on a truck frame—dropped amps 20% and nailed it.
Post-Weld Cleanup and Inspection
Brush with stainless wire brush only—carbon brushes contaminate.
Check for cracks with dye penetrant on critical jobs.
Avoiding Common Pitfalls in MIG Welding 304 Stainless
Beginners overheat, causing sugaring (oxidation). Pros sometimes rush prep.
How to fix: For porous welds, clean better or adjust gas.
I’ve burned through thin pipe—solution: Drop amps, increase speed.
Troubleshooting Weak Penetration
If beads sit on top, boost amps or slow travel.
Test on scrap; I’ve saved jobs by practicing.
Dealing with Spatter and Cleanup
High voltage? More spatter. Use anti-spatter spray.
Grind gently; aggressive grinding thins metal.
Prioritizing Safety When MIG Welding 304 Stainless
Safety isn’t optional. Fumes from stainless contain chromium—use ventilation.
What: Hexavalent chrome risks; exhaust fans mandatory.
How: LEV systems in shops.
When: Always, especially indoors.
Why: Health over convenience.
Essential PPE for Stainless Welding
Helmet with #10 shade, gloves, jacket.
I’ve skipped ventilation once—headache for days. Don’t.
Fire and Burn Prevention Tips
Keep flammables away; 304 sparks hot.
Cool workpieces; distortion from rapid cooling.
Advanced Tips for Pro-Level MIG Welds on 304 Stainless
Pulsed MIG: Alternates current for less heat.
Use on autos; I’ve gotten mirror finishes.
Integrating Automation in Shop Settings
For repetitive jobs, robotic MIG—consistent but setup intensive.
In my fab shop, it cut time on brackets.
Experimenting with Hybrid Processes
MIG-TIG combo for roots; deep penetration.
Worth it for pressure vessels.
Wrapping Up
Tackling MIG welding 304 stainless steel boils down to respecting the material’s quirks while leaning on tried-and-true techniques. You’ve got the tools now to pick the right filler, nail those settings, and sidestep the mistakes that trip up even seasoned welders.
Whether you’re a DIYer fixing a grill or a pro on a deadline, this knowledge means stronger, cleaner welds that last. Always preheat thicker sections to 200°F—it evens out expansion and cuts cracking risks in half.
FAQs
Can I MIG Weld 304 Stainless Without Gas?
No, but you can use flux-cored wire for gasless. It’s messier with more spatter, so stick to gas-shielded for clean results in most shop jobs.
What’s the Best Amperage for 1/8-Inch 304 Stainless?
Aim for 120-150 amps with 0.035 wire. Start low, test on scrap to avoid burn-through—I’ve dialed it in this way countless times.
Why Do My Welds on 304 Crack?
Usually overheating or poor filler match. Keep heat input low, use ER308L, and control interpass temps under 300°F to prevent it.
Is 304 Stainless Harder to Weld Than Mild Steel?
Yes, due to expansion and heat sensitivity. But with proper prep and settings, it’s manageable—focus on distortion control.
How Do I Prevent Warping When MIG Welding Thin 304 Sheets?
Use low amps, fast travel, and tack extensively. Clamp to a heat sink like copper backing; it absorbs heat and keeps things flat.
