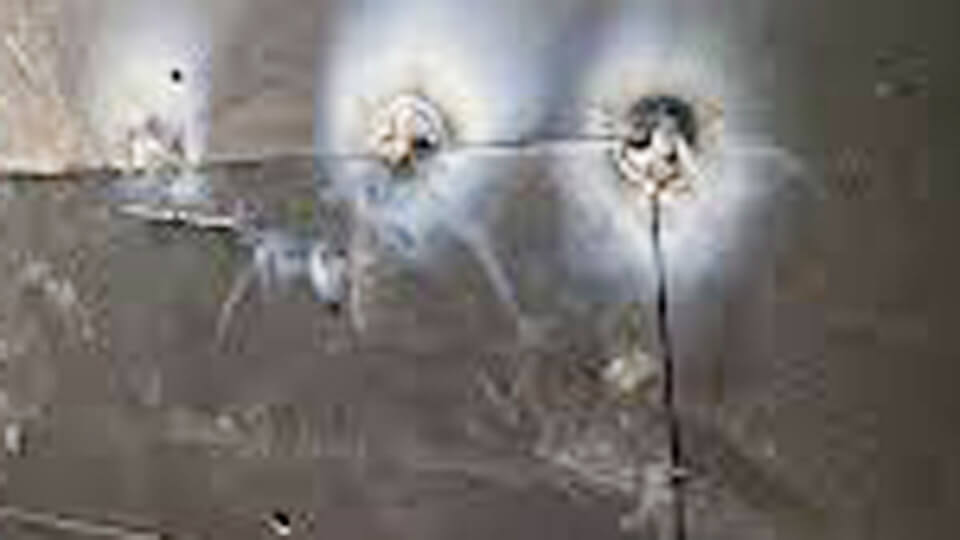

Welding cast iron with flux core demands precise control over heat input and material compatibility to mitigate inherent challenges like high carbon content and brittleness.
Flux-cored arc welding (FCAW) enables effective repairs on gray, ductile, and malleable cast irons when using nickel-based wires, provided preheating and post-weld treatments are applied.
This process suits applications in fabrication shops where cast iron components require joining to themselves or to steels, offering higher deposition rates than shielded metal arc welding (SMAW). Proper execution prevents cracking and ensures structural integrity in high-stress environments.
Image I See You Don’t Know Shit About Welding
Challenges in Welding Cast Iron
Cast iron’s microstructure, dominated by graphite flakes in gray iron or nodules in ductile variants, leads to low ductility and high susceptibility to thermal cracking during welding.
Carbon equivalents typically range from 2.5% to 4.5%, promoting martensite formation in the heat-affected zone (HAZ) if cooling rates exceed 10°C per second. This results in hardness values up to 500 HV, far exceeding the base material’s 150-250 HV.
Flux core welding introduces additional considerations, as the flux composition must neutralize excess carbon migration while providing arc stability. Without adequate preheating, differential expansion causes stresses up to 300 MPa, initiating cracks at the fusion line.
Material compatibility issues arise when welding cast iron to dissimilar metals, where nickel-iron fillers minimize dilution effects. Porosity from trapped gases in the casting further complicates fusion, requiring specific joint preparations to expose clean surfaces.
In professional settings, these challenges manifest in repairs of engine blocks or machinery bases, where failure modes include HAZ cracking (70% of defects) and incomplete fusion (20%).
Addressing them requires quantified approaches, such as maintaining interpass temperatures above 200°C to limit residual stresses below 150 MPa.
Flux-Cored Arc Welding Fundamentals for Cast Iron
FCAW utilizes a tubular electrode filled with flux, enabling self-shielded or gas-shielded operations. For cast iron, self-shielded variants predominate due to portability and reduced gas dependency in shop environments.
The process generates a slag cover that protects the weld pool from atmospheric contamination, with flux ingredients like fluorides and carbonates aiding deoxidation.
Arc characteristics in FCAW for cast iron exhibit voltage fluctuations of 2-5 V due to the wire’s hollow structure, demanding constant voltage power sources set to 23-29 V. Deposition rates reach 4-6 kg/hour, surpassing SMAW by 30-50%, but require careful control to avoid excessive heat input exceeding 2 kJ/mm. Slag behavior is viscous, necessitating chipping between passes to prevent inclusions.
Position usability favors flat and horizontal due to slag fluidity, though all-position wires allow overhead welding with reduced amperage. Joint preparation involves V-grooves at 60-70° angles, with root gaps of 3-5 mm to accommodate expansion.
Travel speed influences bead profile: 200-300 mm/min yields convex beads with penetration depths of 3-5 mm on 10 mm thick sections.
Wire Selection and Classifications
Electrode classification for cast iron FCAW follows AWS A5.15, focusing on ENiFeT3-CI for nickel-iron types. High-nickel wires like Techalloy 99 provide machinable deposits with tensile strengths of 400-500 MPa, suitable for gray iron repairs.
Nickel-iron-manganese variants, such as NI-ROD FC55, offer enhanced crack resistance with elongation up to 15% and hardness of 180-220 HB.
Common diameters include 0.045″ (1.2 mm) and 1/16″ (1.6 mm), with flux compositions containing 40-50% nickel for color matching and ductility.
Self-shielded wires like Flux Cored 55 yield deposits with 1% max carbon and 4% manganese, optimizing for steel-to-cast joins. Polarity is typically DCEN for self-shielded FCAW to maximize penetration while minimizing spatter.
Selection criteria prioritize material type: high-nickel for machinability in gray iron, nickel-iron for strength in ductile. Avoid standard carbon steel wires, as they promote brittle martensite without sufficient alloying.
Preparation and Preheating Requirements
Surface preparation entails grinding to remove graphite smears and oxides, achieving a roughness of 6.3-12.5 μm for optimal fusion. V-groove bevels at 45-60° facilitate root penetration, with backing strips used for through-thickness repairs.
Preheating is mandatory to reduce thermal gradients, targeting 400-600°C for local areas using propane torches or induction coils. For intricate sections like cylinder blocks, full preheating to 500°C minimizes cracking risks by 80%. Maintain interpass temperatures at 200-300°C via insulated blankets to control cooling below 5°C/min.
Equipment setup includes FCAW torches with 15-25° drag angles and 15-25 mm stickout to stabilize the arc. Power sources must deliver 120-350 A, with wire feed speeds of 175-350 ipm depending on diameter.
Welding Parameters and Techniques
Optimal parameters vary by wire size and position. For 0.045″ wire, amperage ranges 120-180 A at 23-27 V, with feed speeds of 225-350 ipm and stickout of 19-25 mm. For 1/16″ wire, increase to 160-250 A at 24-29 V, feed 175-275 ipm, stickout 19-32 mm. Travel speeds of 150-250 mm/min ensure penetration without burn-through.
| Wire Diameter | Amperage (A) | Voltage (V) | Wire Speed (ipm) | Stickout (mm) | Travel Speed (mm/min) |
|---|---|---|---|---|---|
| 0.045″ (1.2 mm) | 120-180 | 23-27 | 225-350 | 19-25 | 200-300 |
| 1/16″ (1.6 mm) | 160-250 | 24-29 | 175-275 | 19-32 | 150-250 |
| 3/32″ (2.4 mm) | 250-350 | 25-29 | 100-200 | 25-38 | 100-200 |
Techniques emphasize short stringer beads of 50-100 mm to limit heat buildup, with peening between passes to relieve stresses up to 100 MPa. Arc stability requires consistent drag angles, avoiding weaving that widens the HAZ. For multi-pass welds, alternate sides to balance distortion.
Penetration behavior shows depths of 4-6 mm in flat positions, reduced by 20% overhead. Deposition efficiency reaches 85-90% with proper slag removal.
Post-Weld Heat Treatment
Immediate post-weld actions include covering with vermiculite for cooling rates under 2°C/min to ambient. Stress relieving at 620°C (1150°F) for 1 hour per 25 mm thickness, followed by furnace cooling to 370°C (700°F), reduces residual stresses by 50-70%.
Full annealing at 900°C (1650°F) softens the HAZ to 150-200 HB, ideal for machinable repairs. Monitor temperatures with thermocouples to prevent over-heating, which could graphitize the weld metal.
Common Defects and Mitigation
Cracking stems from rapid cooling, mitigated by preheating above 400°C and slow cooling. Porosity arises from gas entrapment in castings, addressed by grinding to sound metal and using low-hydrogen fluxes.
Incomplete fusion occurs with excessive travel speeds; reduce to 200 mm/min max. Slag inclusions require thorough chipping and brushing between passes. Ultrasonic testing verifies defect-free welds, targeting acceptance criteria per AWS D1.1.
In one shop repair of a ductile iron manifold, preheating to 500°C and using NI-ROD FC55 wire prevented cracking, achieving full penetration without porosity. Another instance on gray iron gears highlighted the need for peening to avoid distortion exceeding 0.5 mm.
Welding cast iron with flux core delivers reliable performance when parameters align with material demands, yielding joints with 70-80% base strength. Deposition efficiency and arc control enable efficient repairs in fabrication environments.
For advanced applications, consider hybrid FCAW with induction preheating for real-time temperature monitoring, enhancing HAZ toughness by 20-30% through refined microstructures.
FAQs
Can flux core wire be used for all types of cast iron?
Yes, FCAW applies to gray, ductile, and malleable cast irons with nickel-based wires like ENiFeT3-CI, ensuring compatibility via flux adjustments for carbon control.
What polarity is required for flux core welding on cast iron?
Self-shielded FCAW typically uses DCEN for deeper penetration and reduced spatter, while gas-shielded variants employ DCEP for stable arcs on contaminated surfaces.
How does preheating affect flux core welds on cast iron?
Preheating to 400-600°C minimizes thermal stresses, reducing crack propensity by limiting HAZ hardness to under 400 HV and enabling slower cooling rates.
What amperage range is suitable for 0.045″ flux core wire on cast iron?
120-180 A at 23-27 V, with wire speeds of 225-350 ipm, provides optimal penetration and bead control for thicknesses up to 20 mm.
Is post-weld heat treatment always necessary for flux core cast iron welds?
Essential for critical repairs to relieve stresses; stress relieving at 620°C prevents service failures, though minor non-structural welds may suffice with insulated slow cooling.
